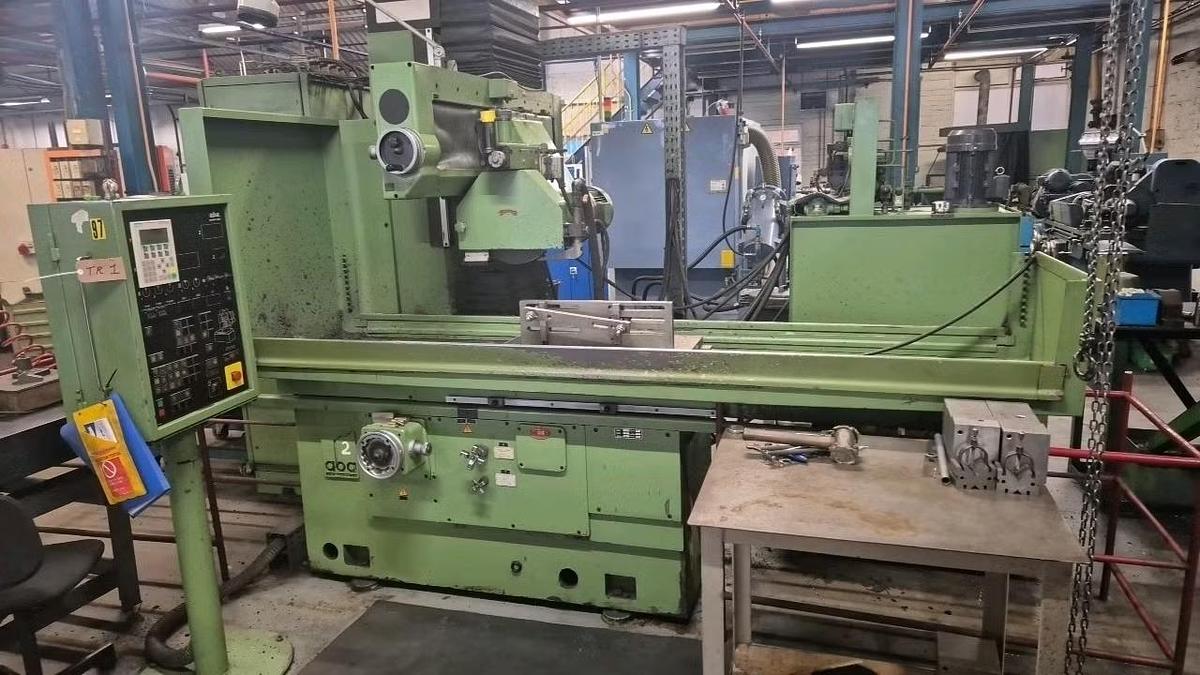

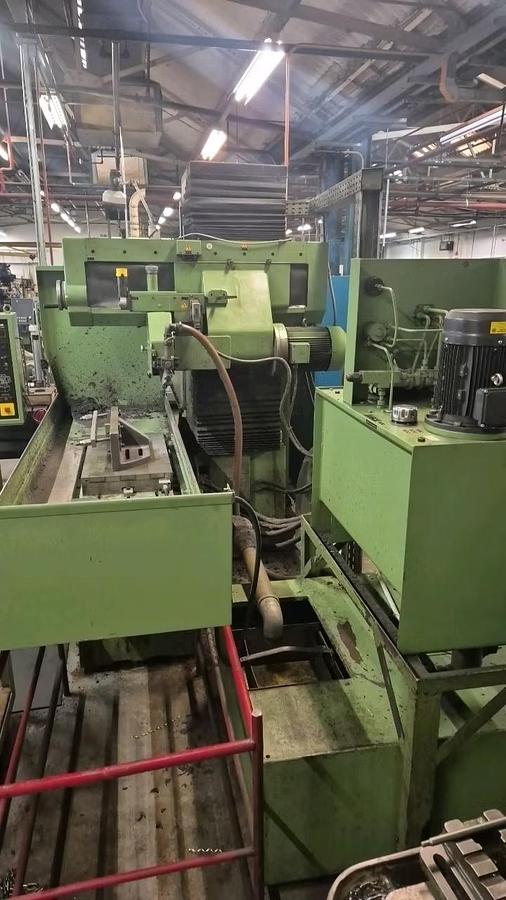

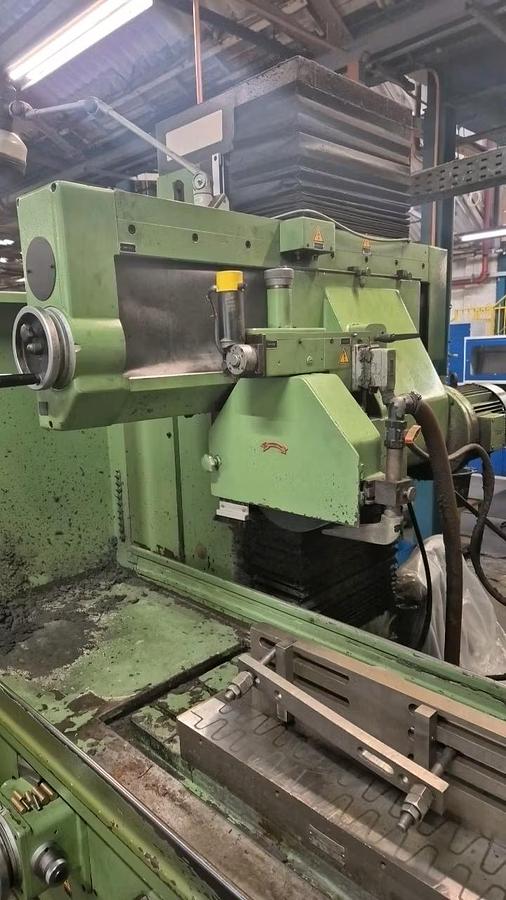

1984 ABA 750/50 SURFACE GRINDER – Heavy-Duty Precision

1984 ABA 750/50 SURFACE GRINDER – Heavy-Duty Precision

Contact us for price

Available quantity:1

Description

ABA 750/50 SURFACE GRINDER – Heavy-Duty Precision : Make / Model: ABA 750/50

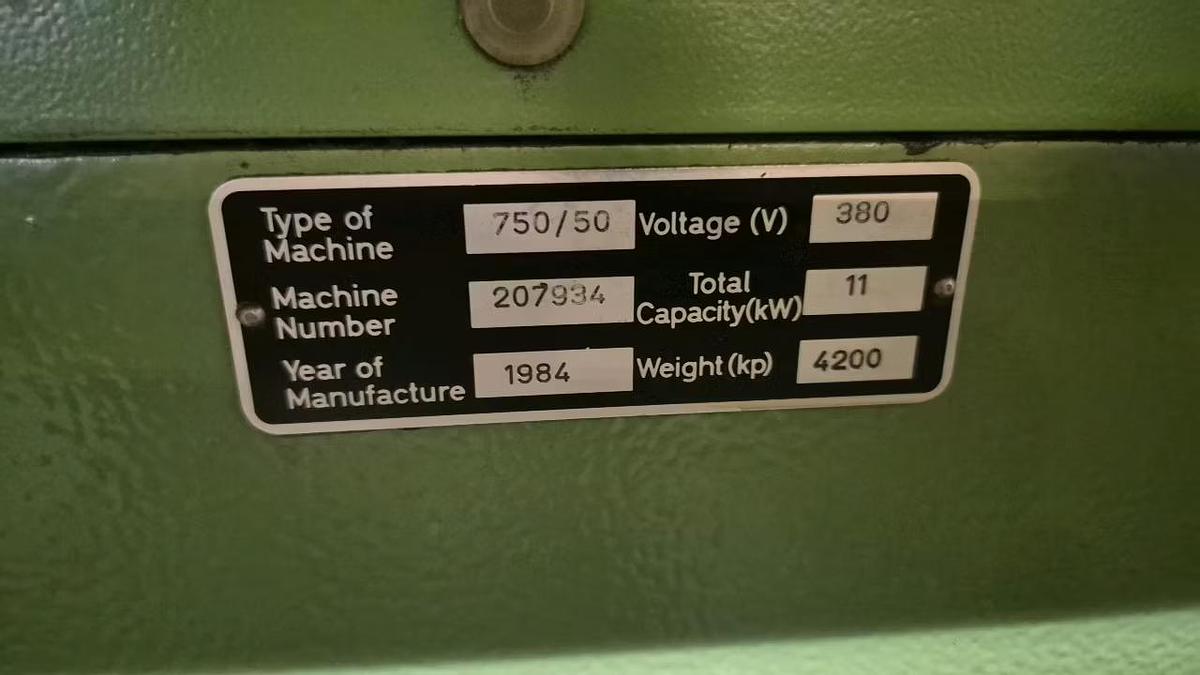

Year of Manufacture: 1984

Max Grinding Length: 750 mm

Max Grinding Width: 500 mm

Transverse Slide Travel: 450 mm

Max Workpiece Height (under wheel): 500 mm

Grinding Wheel Size: Ø 400 × 100 mm

Grinding Wheel Speed: 300 – 3,000 RPM (infinitely adjustable)

Hydraulic Table Speed: 0 – 30 m/min

Creep Feed Table Speed: 0.02 – 1,000 mm/min

Vertical Feed (Infinitely Variable): 0.002 – 0.03 mm per stroke

Spindle Drive Power: 32 kW

Electrical Load: Approx. 50 kW, 380 V, 50 Hz

Machine Weight: Approx. 5,000 kg : High-torque spindle for demanding material removal

Infinitely adjustable speeds for both wheel and table

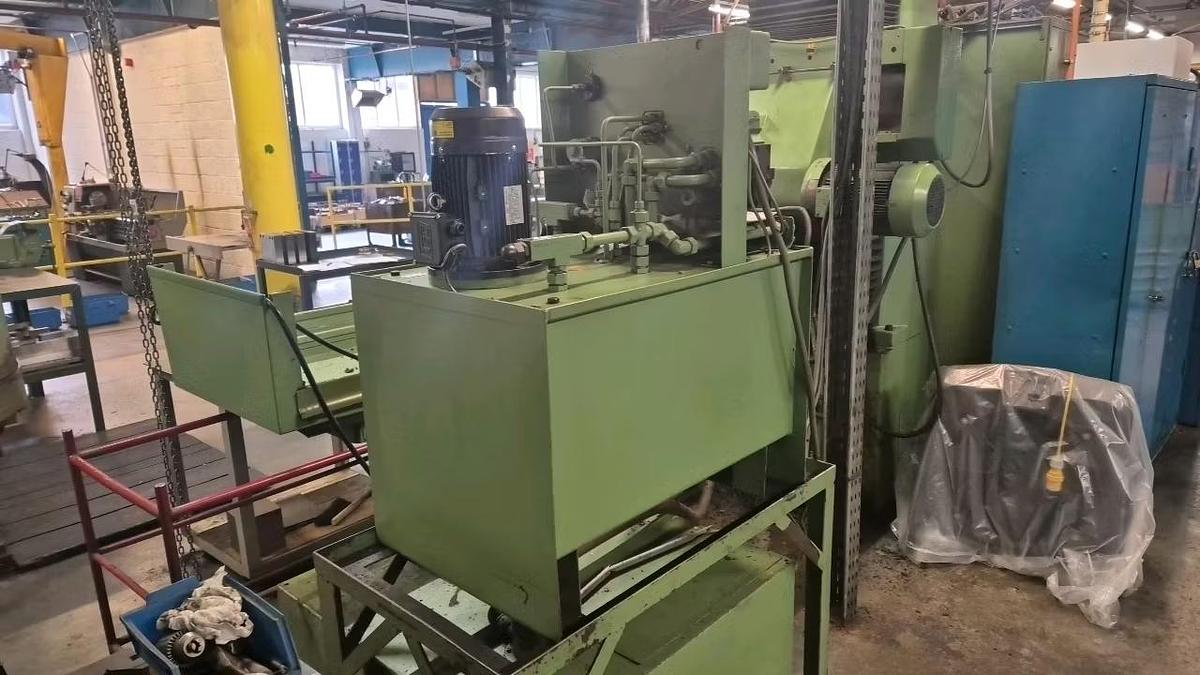

Creep feed and hydraulic table movement for precision and flexibility

Heavy cast base for vibration-free performance

Built for longevity and consistent accuracy.

Specifications

ManufacturerABA
Model750/50 SURFACE GRINDER – Heavy-Duty Precision
Year1984
ConditionUsed
Stock Number14183
